Product name：Insulation nail
Product number：
Browse number：616
Product Feature:
The product produced by our factory improved on the basis of the original details, which increases the nail bonding strength between the pipe and the wall, and changed the original appearance and mechanical properties of nylon Wick, on the whole, more rational, more mature.
1,it’s made of high quality PE or nylon engineering plastics
2, Good weather resistance and aging resistance, at-40 ° c to + 70 degrees Celsius temperature and long-term stability
3, Shock-resistant, weather-resistance and fracture-resistant, stable and durable
4, Hammer tapping, the construction is convenient, fast, economical, safe.
Product Description:
We use the best HDPE to ensure the purity of the insulation nails, the production is pure and strong.
More information:
1.Material: High quality plastic and steel
2.Technique: Insulation nails is made by largely automatic injection-molding machine
3.Use: The insulation nails can be widely used in floor heating industry, power plants, petrochemical external wall insulation engineering, the construction industry, dill diameter 8or10. Available in different lengths fitting to the thickness of insulation board.

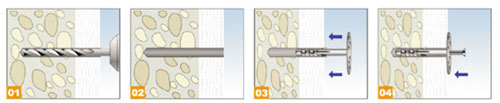

Construction Procedure:
1、Positioning: After the insulation board is pasted to the wall, determine the location of the anchorage point.
2、Drill hole: drill hole through the insulation board in position according to the specified size. (Note: the actual depth into the wall should be above 40mm)
3、Placement: insert the casing directly into the drilled nail hole until the pipe coil is close to the insulation board.
4、Knock: hammer the steel nail into the pipe (the steel nail should be perpendicular to the insulation board)
Construction Parameter:
Installation Procedure:
