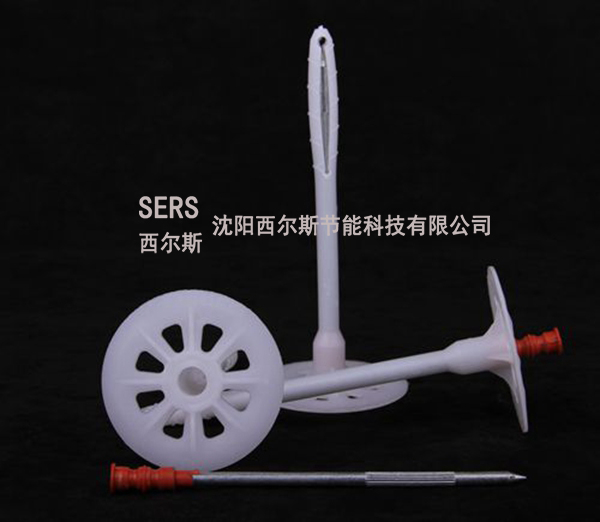

Product name：Heat break bridge
Product number：
Browse number：7196
Product info
Feature：
It has improved some details ongthe original basis through our disigning staff's elaborate design,which not only enlarges the thickness and diameter to 60cm ,but also increase the combination strenght between tapped foot and wall body, and changes the external mechanical properth of original nylon, so as to be more reasonable and mature on the whole.
1. It adopts goo-quality engineering platics modification.
2. Gpod weather resistance and ageing resistance and keep steady under the temperature between -40℃ and 70℃.
3. Anti-vibration anti-efflorescence and anti-rupture, stable and durable.
4. It can be knocked in by hammering so that the construction will be easy fast, economiacl and safe.
Suitable For：EPS、XPS、stone wool 、mineral wool、foam glass、foam cement and so on .
Construction Procedure：
1. Location : After insulation board on the wall, anchorage point location is determined.
2. Drilling : Through the insulation board size borehole by the regulation is in place. (note: actual depth into the wall should be in more than 30 mm)
3. Placement : The casing is directly inserted into the nail hole that make the tube close to the Insulation board.
4. In : Hand beats will take red hat steel pin type pipe (steel nail should be parallel to the insulation board).

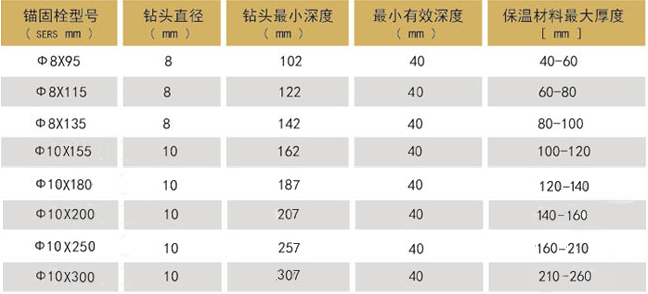

Construction Parameter：
Installation Process：
